Loss of M-21 and D-21 On 30 July 1966

Photo Archive and Data

Pilot: Bill Parks

LCO: Ray Torrick

60-6941 (M-21) and (D21A) #504

60-6941 (M-21) This was the second A-12 to be converted to an M-21 for launching the D-21 reconnaissance drone. During a flight test on 30 July 1966 for launching the drone, the drone pitched down and struck the M-21, breaking it in half. Pilot Bill Park and Launch Control Officer (LCO) Ray Torrick stayed with the plane a short time before ejecting over the Pacific Ocean. Both made safe ejections, but Ray Torrick opened his helmet visor by mistake and his suit filled up with water which caused him to drown. This terrible personal and professional loss resulted in "Kelly" Johnson's decision to cancel the M-21/D-21 program. LAC #135 (941) flew 95 flights for 152.7 hours total flight time prior to the crash.

The following data is derived from www.habu.org (with Permission):

She was lost on Saturday, July 30, 1966. Prior to this flight, there had been 3 successful D-21 launches from 941, but all 3 had been executed with the mother ship in a .9g "dive," flying slightly downward to assist in blackbird/drone separation. If the still-experimental M/D-21 were to be used in combat (real-world) missions, the crew might be under fire from missiles and fighter/interceptors, and so might not have the luxury of launching from a .9g dive. In this fourth launch, the D-21 would separate in a level-flight, 1g configuration.

For the first 2 to 3 seconds of the drone launch, everything went normally. Unfortunately, the drone was not able to penetrate the shock wave coming off the mother ship. The D-21 (#504) had almost cleared the M-21's rudders when it encountered the shock wave, bounced off, rolled 45 degrees to the port (left) side, and impacted the mother ship almost directly at Station 715, where the forward fuselage attaches to the wing root. Between the impact and resulting explosion, #941 was for all intents and purposes cut cleanly in two.

Lockheed test pilot Bill Park and Launch Control Officer Ray Torrick remained in the tumbling wreckage until a lower altitude where they ejected safely, but they landed in the open ocean, and Torrick drowned when his pressure suit took on water. Some reports attribute this to Torrick prematurely opening the faceplate of his visor, but other informed sources have stated that the buoyancy of the David Clark suits would make this almost impossible. Others have speculated that his suit was torn by shrapnel from the wreckage as he ejected. In either case, no further M/D-21 flights occurred; furthermore, a Baylor bar was then added to the flight suit helmets to ensure that the faceplate could not accidentally be opened in similar situations.

All M/D-21 operations ended with the death of Ray Torrick. All subsequent flights of the D-21 were as D-21B's, which were reconfigured to launch the drone from an under wing pylon of a B-52 (much like the X-15 had been), boosted to Mach 3 by a rocket motor that was jettisoned after the D-21B's Marquardt ramjet was started.

Photo Archive of the Crash

The following images was extracted from a movie handheld by Keith Beswick while flying along side of the M-21 in another Blackbird at Mach 3.0. Ray Torrick, the Launch Control Officer (LCO) safely ejected from the M-21 however he drowned at sea 150 miles off the coast of California. Bill Parks, Pilot survived.

Credit for the following images goes to Keith Beswick (Lockheed), Jim Fitzgerald (Lockheed) and especially to Chuck Wygant (Lockheed) for obtaining a copy of this rare film footage.

Images are click to enlarge

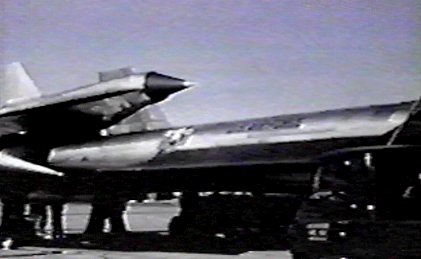

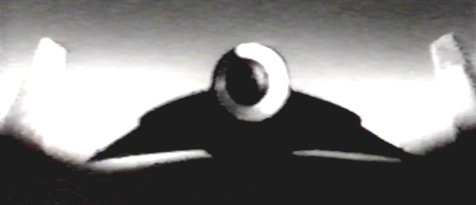

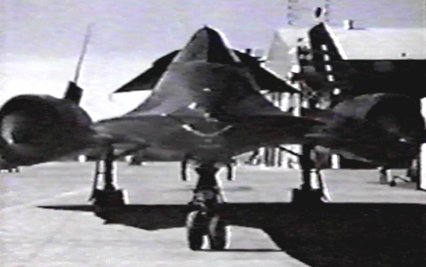

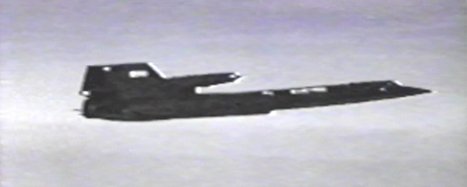

M21_001.JPG D-21 mounted on M-21 Mother ship 60-6941 at Area 51	M21_002.JPG M-21 Taxis out at Area 51	M21_003.JPG M-21 60-6941 in flight 30 July 1966	M21_004.JPG D-21 shown from a previous flight with frangible nosecone

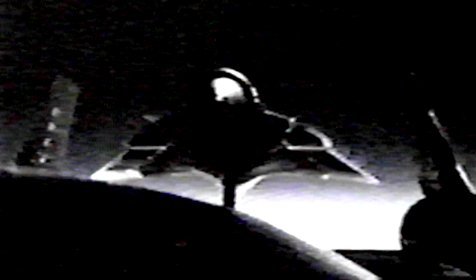

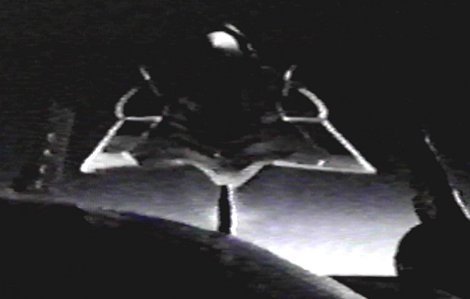

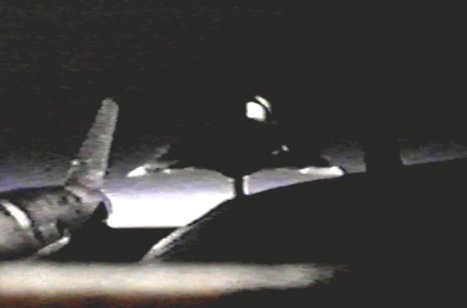

M21_005.JPG D-21 on Mother ship 60-6941 (M-21) prior to crash	M21_006.JPG D-21 on Mother ship 60-6941 (M-21) prior to crash	M21_007.JPG D-21 on Mother ship 60-6941 (M-21) prior to crash	M21_008.JPG D-21 Ignition

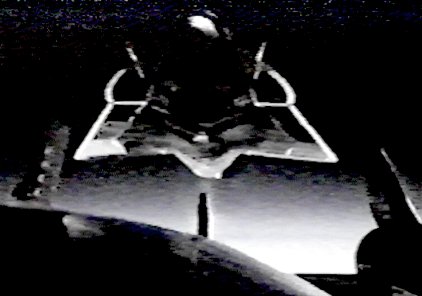

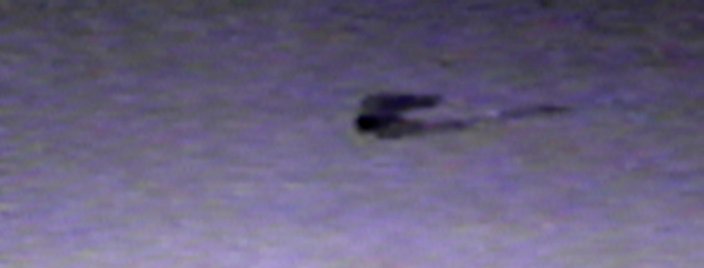

M21_009.JPG D-21 Separates from Mother ship	M21_010.JPG D-21 un-starts and falls off on left wing of D-21 Silhouette of bottom of D-21 shown here	M21_011.JPG D-21 begins roll to left	M21_012.JPG D-21 impacts the M-21 Mother ship causing nose to pitch-up breaking the aircraft in two at the 715 station where the wings attach

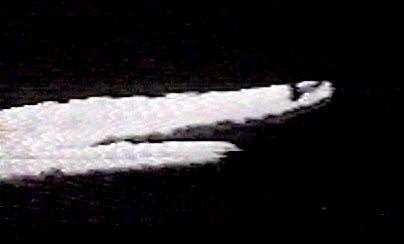

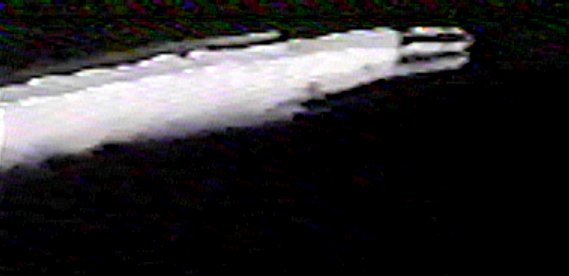

M21_013.JPG M-21 initial breakup-Frame#1	M21_014.JPG M-21 Breakup continues-Frame#2	M21_015.JPG Breakup continues-Frame#3	M21_016.JPG  Breakup continues-Frame#4
